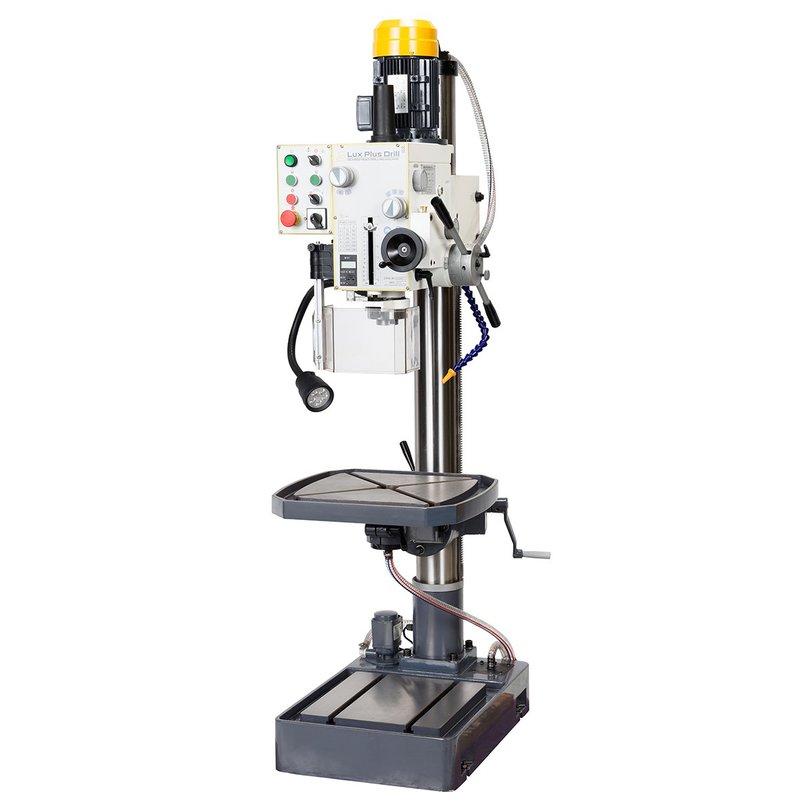

CHESTER Lux Plus 12 Speed Geared Head Pillar Drill with Power Feed & Auto Tapping

Drilling Capacity 30mm in Steel. Spindle Taper 4MT.

• Spindle Taper No.4 Morse
• Drilling Capacity (Mild Steel) 30mm
• Drilling Capacity (Cast Iron) 40mm
• Distance from Spindle Nose to Table 715mm Max
• Distance from Spindle Nose to Base 1180mm Max
• Head Tilts 45° - 0 - 45° for Versatile Drilling Angles
• Head Rotates 360° in Vertical Plane
• Spindle Travel 120mm
• Table Size 500 x 460mm
• Number of Spindle Speeds 12
• Range of Spindle Speeds 75-3200rpm
• Powered Spindle Feed with Depth Setting & Auto Return
• Automatic Tapping Function
• Maximum Spindle Travel 120mm
• Column Diameter 115mm
• Main Motor Power 1.1 / 1.5 kW
• Power Supply 400V 3 Phase.
• With Drill Chuck & Interlocked Spindle Guard, Electronic Depth Display, Coolant System, LED Lamp, Drawbar, Tool Box and Operation / Parts List
