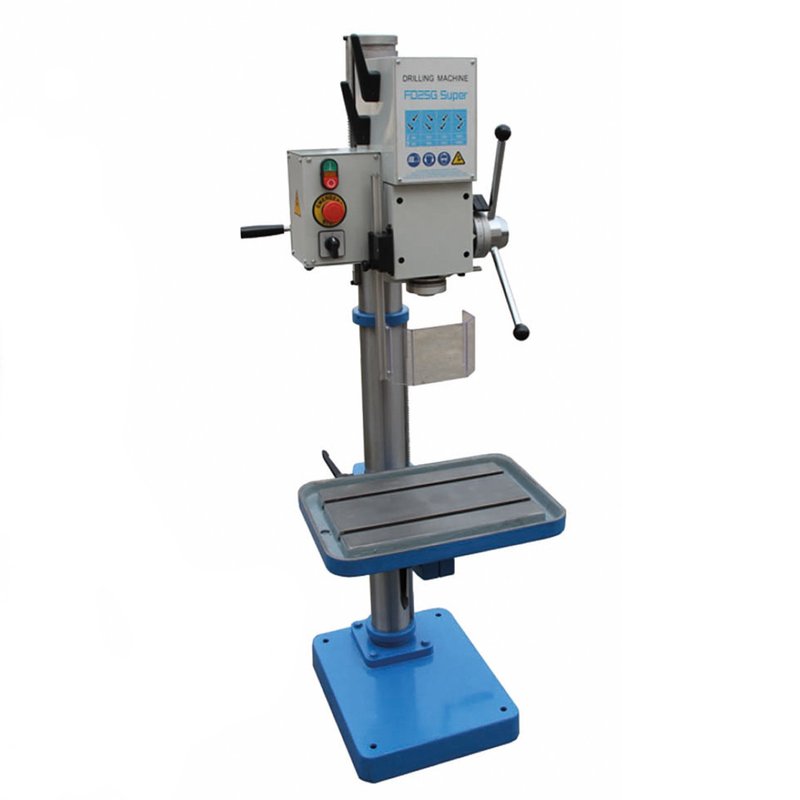

CHESTER FD25G Super Fully Geared Head Pillar Drill with 2 Speed Motor

Drilling Capacity 26mm (Steel). Spindle Taper 3MT. Speeds 105-2900rpm.

• Spindle Taper No.3 Morse
• Drilling Capacity (Mild Steel) 26mm
• Drilling Capacity (Cast Iron) 26mm
• Distance from Spindle to Column 255mm
• Distance from Spindle to Table (max) 840mm
• Distance from Spindle to Base (min/max) 950/1220mm
• Vertical Travel of Drilling Head 320mm
• Head Rotates 360 Degrees
• Vertical Travel of Table 510mm
• Table Size 500 x 350mm
• Table Tilt to 45 Degrees
• Table Rotates 360 Degrees
• Number and size of T slots on Table 2x14mm
• Number of Spindle Speeds 8
• Range of Spindle Speeds 105-2900rpm
• Spindle Feed Manual
• Maximum Spindle Travel 125mm
• Column Diameter 100mm
• 2 Speed Motor Power 0.9/1.1kW (1.2/1.47hp)
• Auto Tool Ejector
• With Drill Chuck & Guard, Reducing Sleeves, Operators & Parts Manual, Foundation Bolts
