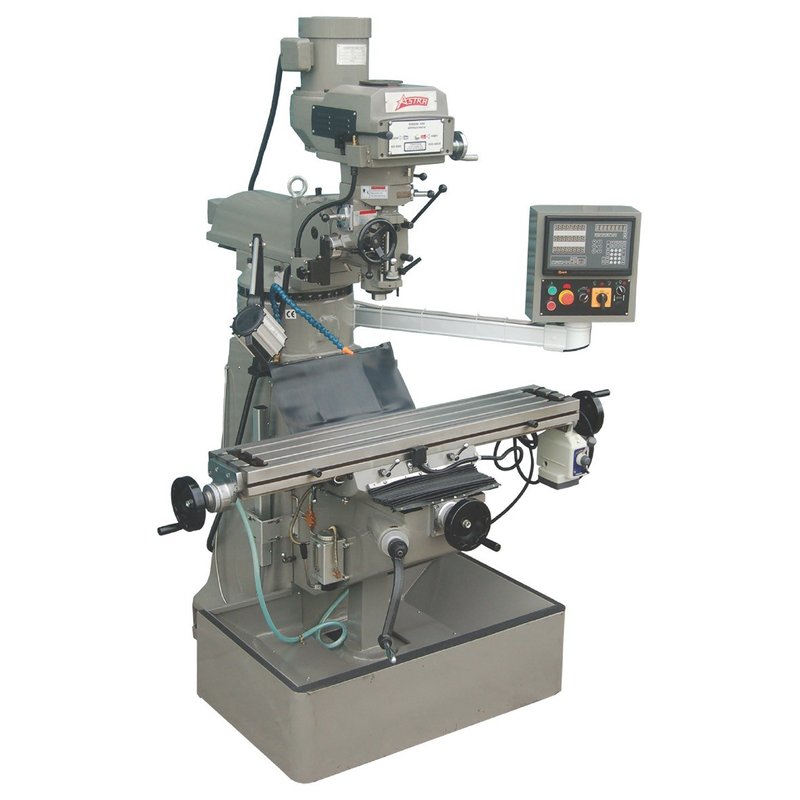

ASTRA 3VST Turret Milling Machine with Swivel Control Panel & Digital Readout.

Vari-Speed Head with Power Feed Quill & Auto Stop

• Table Working Surface 1270 x 254mm
• Longitudinal Travel 730mm
• Cross Travel 370mm
• Vertical Travel 400mm
• Load Capacity 150kg
• Spindle Taper R8
• Spindle Speeds 60 - 4200rpm Variable
• Spindle Drive Motor 2.2kW (3HP)
• Quill Travel 127mm
• Spindle Centre to Column 215-450mmn
• Spindle to Table 45-395mm
• Drilling Capacity 16mm
• Longitudinal Feed Rate 20-1000mm/min
• Cross & Vertical Feeds Manual
• Rapid Feed Longitudinal 2000mm/min
• Power Feed to Quill with Auto Stop
• Interlocked Spindle Guard
• Coolant System
• Heavy Duty Steel Step On Chip Tray with Anti-Slip
• 3 Axis Digital Read Out and LED Work Lamp
• K160 Machine Vice, Clamp Kit, Set of Collets, Drill Chuck
• Tools & Tool Box. Operators Manual.
