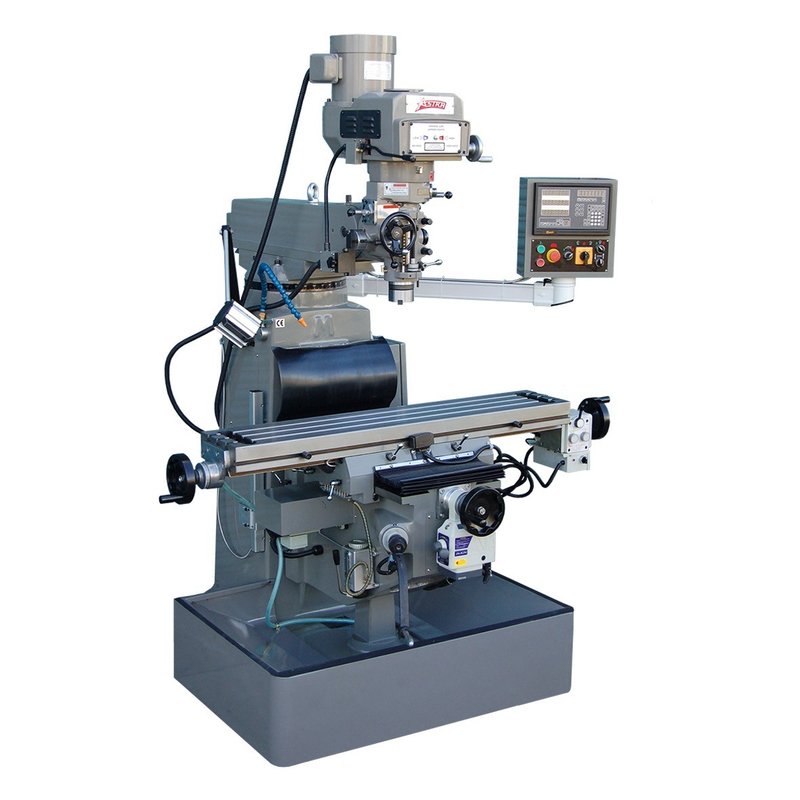

ASTRA 5VST Turret Milling Machine with Swivel Control Panel & Digital Readout

Vari-Speed Head with Power Feed Quill & Auto Stop

• Table Working Surface 1470 x 320mm
• Longitudinal Travel 900mm
• Cross Travel 415mm
• Vertical Travel 430mm
• Load Capacity 200kg
• Spindle Taper 40ISO
• Drawbar M16x2
• Spindle Speeds 50 - 3750rpm Variable
• Spindle Drive Motor 3.7kW (5HP)
• Quill Travel 127mm
• Quill Diameter 105mm
• Spindle Centre to Column 215-450mm
• Spindle to Table 45-395mm
• Drilling Capacity 16mm
• Longitudinal Feeds 42, 76, 164 & 262mm/min
• Rapid Feed Longitudinal 700mm/min
• Cross Feed (Electronic) 20-1000mm/min
• Rapid Cross Feed 2000mm/min
• Vertical Power Feed 340mm/min
• Power Feed to Quill with Auto Stop
• Airpowered Drawbar
• Interlocked Spindle Guard
• Coolant System
• Heavy Duty Steel Step On Chip Tray with Anti-Slip
• 3 Axis Digital Read Out and LED Work Lamp
• K160 Machine Vice, Clamp Kit, Set of Collets, Drill Chuck
• Tools & Tool Box. Operators Manual.
