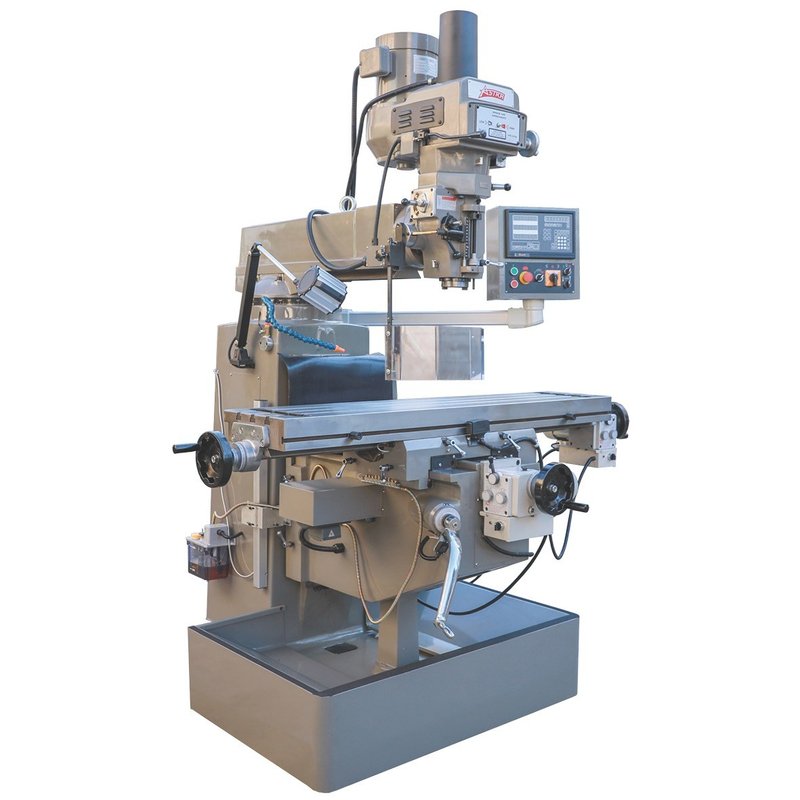

ASTRA 5VST SUPER Turret Milling Machine with X & Y Ball Screws and 3 Axis Digital Readout

40 ISO Vari-Speed Head and Gear Feeds to Table

• Table Working Surface 1470 x 320mm
• Longitudinal Travel 920mm (X auto 870mm)
• Cross Travel 445mm
• Vertical Travel 480mm
• Load Capacity 250kg
• Spindle Taper 40ISO
• Drawbar M16x2
• Spindle Speeds 50 - 3750rpm Variable
• Spindle Drive Motor 3.7kW (5HP)
• Quill Travel 125mm
• Quill Diameter 105mm
• Spindle Centre to Column 215-700mm
• Spindle to Table 60-540mm
• Vertical Milling Capacity 80mm
• Drilling Capacity 20mm
• Long & Cross Feeds 42, 76, 164 & 262mm/min
• Rapid Feed Long & Cross 700mm/min
• Vertical Power Feed 340mm/min
• Power Feed to Quill with Auto Stop
• Ball Screw for X & Y Axis
• Geared Power Feeds Long & Cross
• Power Rise & Fall to Knee
• Airpowered Drawbar
• Interlocked Spindle Guard
• Coolant System
• Heavy Duty Steel Step On Chip Tray with Anti-Slip
• 3 Axis Digital Read Out and LED Work Lamp, One Shot Lubrication,
• K160 Machine Vice, Clamp Kit, Tools & Tool Box. Operators Manual.
