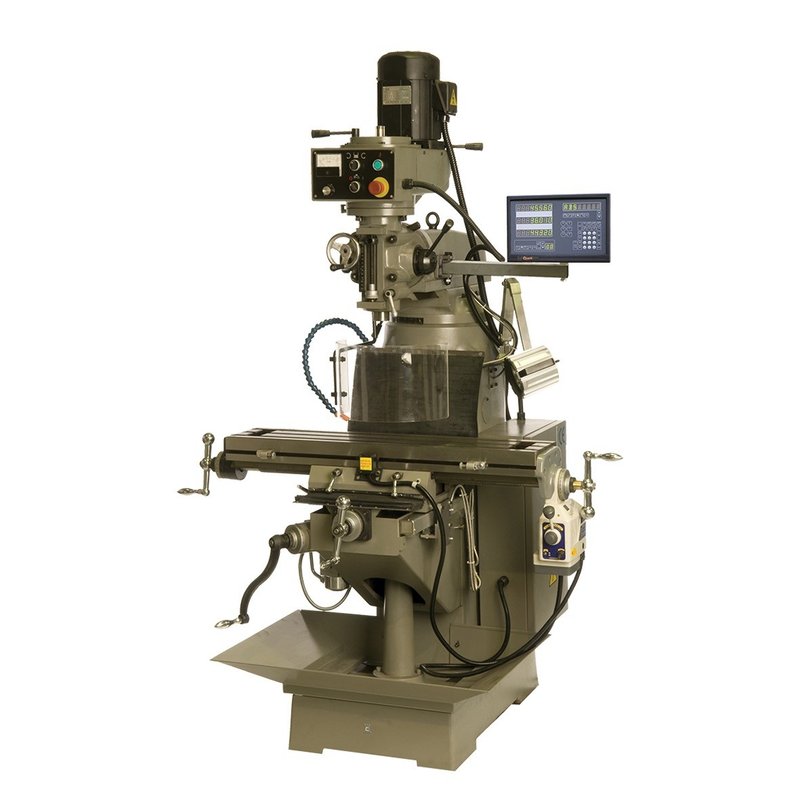

CHESTER 836 Turret Milling Machine with 3 Axis Digital Readout. Choice of 240V or 415V.

Vari-Speed Head with Power Feed Quill & Auto Stop

• Table Working Surface 910 x 200mm
• Longitudinal Travel 550mm
• Cross Travel 240mm
• Vertical Travel 350mm
• Load Capacity 150kg
• Spindle Taper R8
• Spindle Speeds 0 - 2000rpm Variable
• Spindle Drive Motor 1.5kW (2HP)
• Voltage Input 240V or 415V (Choice)
• Quill Travel 127mm
• Spindle Centre to Column 100-425mmn
• Spindle to Table 380mm (Max)
• Vertical Milling Capacity 20mm
• Longitudinal Feed Rate 20-1000mm/min
• Rapid Feed Longitudinal 2000mm/min
• Cross & Vertical Feeds Manual
• Power Feed to Quill with Auto Stop
• Interlocked Spindle Guard
• Coolant System & Splash Tray
• 3 Axis Digital Read Out, Work Lamp, 150mm Machine Vice,
• Clamp Kit, 5 x R8 Collets, Tool Box, Operators Manual.
